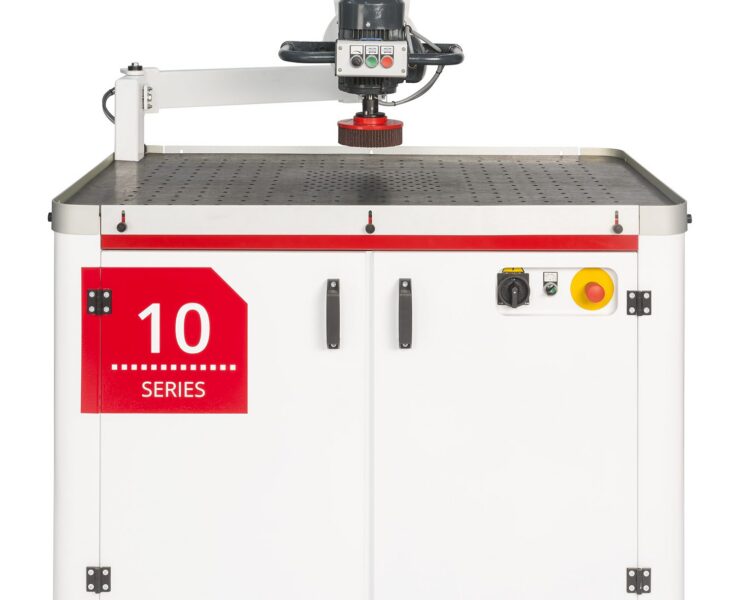

Manual deburring machine – Series 10

Introducing Series 10

This multi-functional machine is equipped with a pivoting head consisting of two elements: a sanding and pre-deburring disc, and an abrasive flap brush or Scotch-Brite pad for deburring. These tools are easily interchangeable.
Thanks to its 180° pivoting system, switching from disc to brush is quick, effortless, and uninterrupted.
Depending on the tool used, the machine can deburr, round corners, perform surface finishing, remove oxides from laser cutting, or remove significant slag. It can also produce a mirror finish if required.
The worktable is equipped with a high-grip mat and a vacuum zone to hold small parts securely during processing.
The Series 10 is particularly well-suited for single parts as well as small to medium production runs.
Mounted on four casters, it moves easily and quickly around the workshop.
Simple and intuitive, its use makes it accessible to all operators.

Main features

• Entry-level model
• Manual version for individual parts and small series
• An economical solution for deburring,edgerounding,laser slag and oxide removal, and finishing of parts
• Work surface: 1300 x 800 mm
• Working on flat parts or tubes made of steel, stainless steel, copper, brass and aluminum
• Work table equipped with a high-grip mat with a vacuum zone
• Work head combining an abrasive disc for sanding and pre-deburring, and a brush for rounding edges and finishing
• 180° rotating deburring units for quick disc-to-brush transition

Technical specifications

• Number of units: 2
• Unit types: disc / brush
• Disc/brush diameter: 150 mm
• Rotary deburring units: 180°
• Table dimensions: 1300 x 800 mm (960 mm working height)
• Suction area: 310 x 260 mm
• Maximum thickness of a part: 100 mm
• Weight: 270 kg

Highlights of the 10 Series

• Reduced consumable costs thanks to long-life brushes.
• 3-4 times faster than manual deburring
• 400 x 300 mm suction area for small rooms
• Budget entry-level model
• Compliant with CE and European standards
